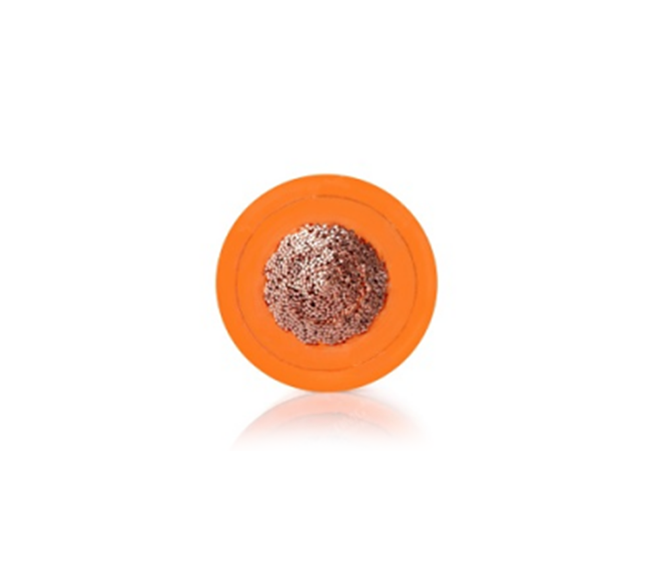

FT-7203 Automobile high voltage cable

Product Specifications Of FT-7203 Automobile high voltage cable:

Rated Voltage	1500VDC
Resistance(20°C)	7.6OΩ/M	0.527OΩ/M
	4.71OΩ/M	0.368OΩ/M
	2.89OΩ/M	0.259OΩ/M
	1.82OΩ/M	0.196OΩ/M
	1.16OΩ/M	0.153OΩ/M
	0.743OΩ/M	0.129OΩ/M
Temperature Range	-40℃~125℃
Flammability Rating	vw-1
Withstand Voltage	6000V/5min
Oil Resistance,Acid Resistance,Alkali Resistance	YES

Product Specifications Of FT-7203 Automobile high voltage cable:

Serial Number	Name	Conductor Structure	Insulation Thickness (Average)	Insulation Thickness (Minimum)	Insulation Diameter	Sheath Thickness	Outer Diameter	Bending Radius
1	2.5MM2	124/0.16	0.6	0.44	3.3±0.2	0.6	5.2±0.2	≥4*OD
2	4MM2	199/0.16	0.6	0.44	4.1±0.2	0.6	5.8±0.2	≥4*OD
3	6MM2	298/0.16	0.6	0.44	4.8±0.2	0.6	6.7±0.3	≥4*OD
4	10MM2	497/0.16	0.8	0.62	6.25±0.2	0.8	8.6±0.3	≥4*OD
5	16MM2	796/0.16	1	0.8	8.1±0.2	1.3	11.2±0.3	≥4*OD
6	25MM2	1244/0.16	1.3	1.04	10.2±0.2	1.3	13.5±0.3	≥5*OD
7	35MM2	1743/0.16	1.3	1.04	11.5±0.3	1.3	14.5±0.5	≥5*OD
8	50MM2	2492/0.16	1.5	1.2	13.6±0.3	1.4	17.0±0.5	≥5*OD
9	70MM2	3486/0.16	1.5	1.2	15.5±0.3	1.5	19.5±0.5	≥5*OD
10	95MM2	4732/0.16	1.8	1.52	18.2±0.5	1.5	22.6±0.5	≥5*OD
11	120MM2	5985/0.16	1.9	1.61	20.2±0.5	1.5	24.6±0.5	≥6*OD
12	150MM2	74687/0.16	2.1	1.79	22.5±0.5	1.6	27.1±0.5	≥6*OD
