Product Features:

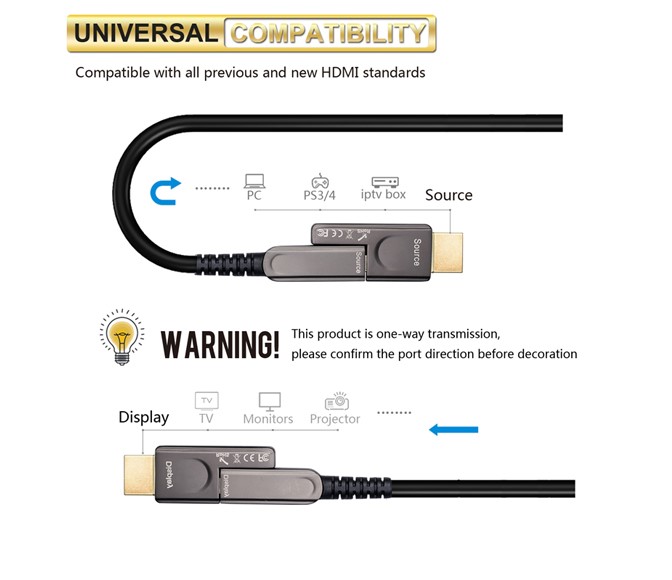

• Irreversible Input and Output Connector： there#39;s reminding words on both input output port, pls pay special attention to use and install strictly as the instruction, No irreversible!

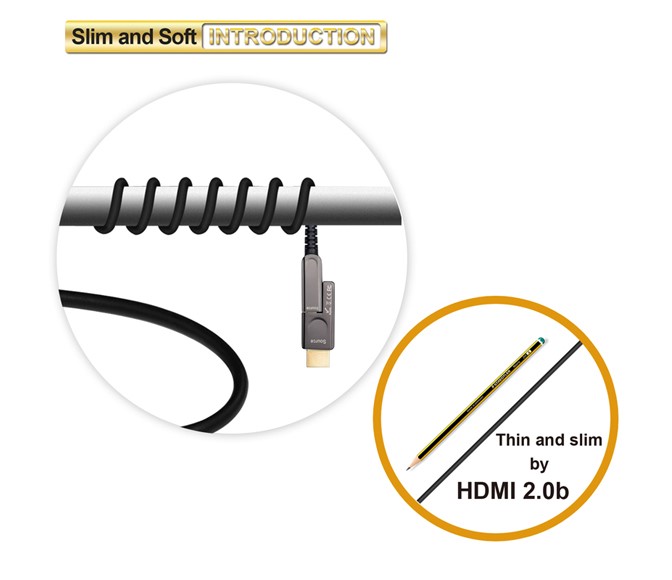

• Slim Body: OD4.8mm, as thick as a pen. Soft, thin, easy to be walled up in a wall.

• Powerful Chips: we choose the chips made by German famous brand, which can keep audio/video signal constant stable.

• Exquisite, Smart Dual Head Design: dual head designing, convenient disassembling for wall wiring. It is compatible with HDMI to Type A HDMI to Micro connectors, and can be directly connected with all devices having Micro port.

• Various Application: It is specially designed for long distance wiring environment like Home theater, company video conference system etc. It also can be widely used for Medical image system, airport boarding video system, broadcast and TV station , gymnasium, apartment safe guard system etc.

Product Description:

^.^ NEW STRUCTURE OF CORE CABLE:

Ⅰ.JYFT AOC HDMI cable combines optical fiber with copper.

Ⅱ.It can support bidirectional EDID communication between HDCP2.2 and HDCP, 4096*2160, 4K60Hz, 3D high definition transmission.

Ⅲ.Total bandwidth is 18Gbpss, HDMI 2.0 standard, cable length cab reach 100m by the longest.


^.^ DISASSEMBLE DUAL HEAD DESIGNING:

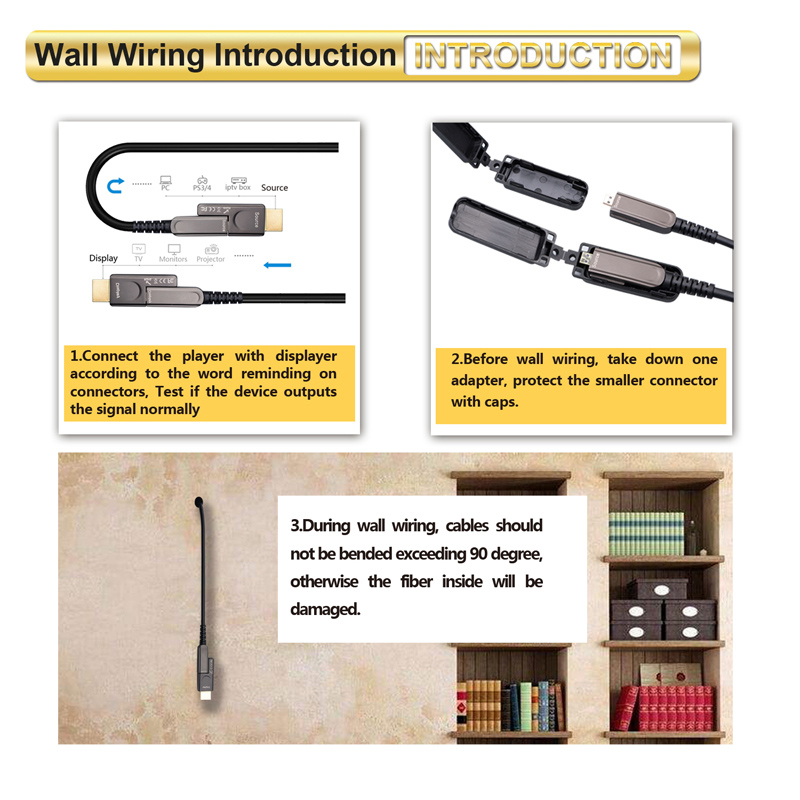

JYFT HDMI Fiber cable heads can be detached, the size after splitting is 34.7*12.7*9.3. We also supply PVC cap for Micro port to avoid scratching during wall wiring.


^.^ LENGTH FOR CHOICE:

We have three regular length after marketing research and cost calculation, that is 33FT, 50FT, 100FT. We can also provide customizing service according to site measurement.


^.^ OTHER PARAMETER

Ⅰ.Total bandwidth: 18Gpbs;

Ⅱ.Video bandwidth: 6Gpbs*3 channels;

Ⅲ. Power: 250mW;

Ⅳ. Working temperature: 0°C to 50°C (32°F to 122°F);

Ⅴ. Storage temperature: -20°C to 70°C (-4°F to 158°F);

Ⅵ. Relative humidity: 5% to 90% (non-condensing)
