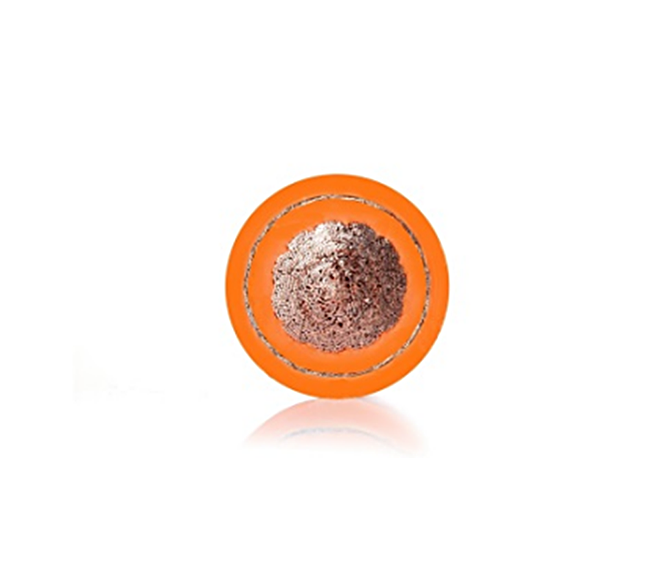

Product Specifications Of Automobile high voltage cable:
| Rated Voltage | 1500VDC | ||||
| Resistance(20°C) | 7.6OΩ/M | 0.527OΩ/M | |||
| 4.71OΩ/M | 0.368OΩ/M | ||||
| 2.89OΩ/M | 0.259OΩ/M | ||||
| 1.82OΩ/M | 0.196OΩ/M | ||||
| 1.16OΩ/M | 0.153OΩ/M | ||||
| 0.743OΩ/M | 0.129OΩ/M | ||||
| Temperature Range | -40℃~125℃ | ||||
| Flammability Rating | vw-1 | ||||
| Withstand Voltage | 6000V/5min | ||||
| Oil Resistance,Acid Resistance,Alkali Resistance | YES | ||||

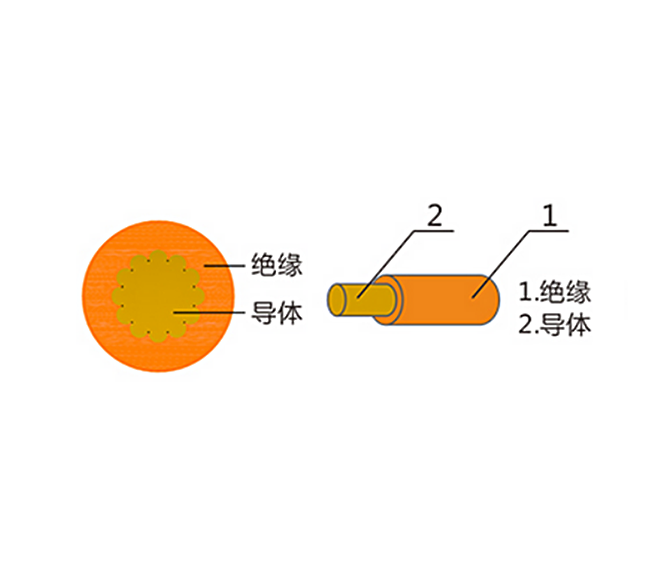

Product Specifications Of Automobile high voltage cable:
| Serial Number | Name | Conductor Structure | Insulation Thickness (Average) | Insulation Thickness (Minimum) | Insulation Diameter | Sheath Thickness | Outer Diameter | Bending Radius |
| 1 | 2.5MM2 | 124/0.16 | 0.6 | 0.44 | 3.3±0.2 | 0.6 | 5.2±0.2 | ≥4*OD |
| 2 | 4MM2 | 199/0.16 | 0.6 | 0.44 | 4.1±0.2 | 0.6 | 5.8±0.2 | ≥4*OD |
| 3 | 6MM2 | 298/0.16 | 0.6 | 0.44 | 4.8±0.2 | 0.6 | 6.7±0.3 | ≥4*OD |
| 4 | 10MM2 | 497/0.16 | 0.8 | 0.62 | 6.25±0.2 | 0.8 | 8.6±0.3 | ≥4*OD |
| 5 | 16MM2 | 796/0.16 | 1 | 0.8 | 8.1±0.2 | 1.3 | 11.2±0.3 | ≥4*OD |
| 6 | 25MM2 | 1244/0.16 | 1.3 | 1.04 | 10.2±0.2 | 1.3 | 13.5±0.3 | ≥5*OD |
| 7 | 35MM2 | 1743/0.16 | 1.3 | 1.04 | 11.5±0.3 | 1.3 | 14.5±0.5 | ≥5*OD |
| 8 | 50MM2 | 2492/0.16 | 1.5 | 1.2 | 13.6±0.3 | 1.4 | 17.0±0.5 | ≥5*OD |
| 9 | 70MM2 | 3486/0.16 | 1.5 | 1.2 | 15.5±0.3 | 1.5 | 19.5±0.5 | ≥5*OD |
| 10 | 95MM2 | 4732/0.16 | 1.8 | 1.52 | 18.2±0.5 | 1.5 | 22.6±0.5 | ≥5*OD |
| 11 | 120MM2 | 5985/0.16 | 1.9 | 1.61 | 20.2±0.5 | 1.5 | 24.6±0.5 | ≥6*OD |
| 12 | 150MM2 | 74687/0.16 | 2.1 | 1.79 | 22.5±0.5 | 1.6 | 27.1±0.5 | ≥6*OD |
