Product Features:

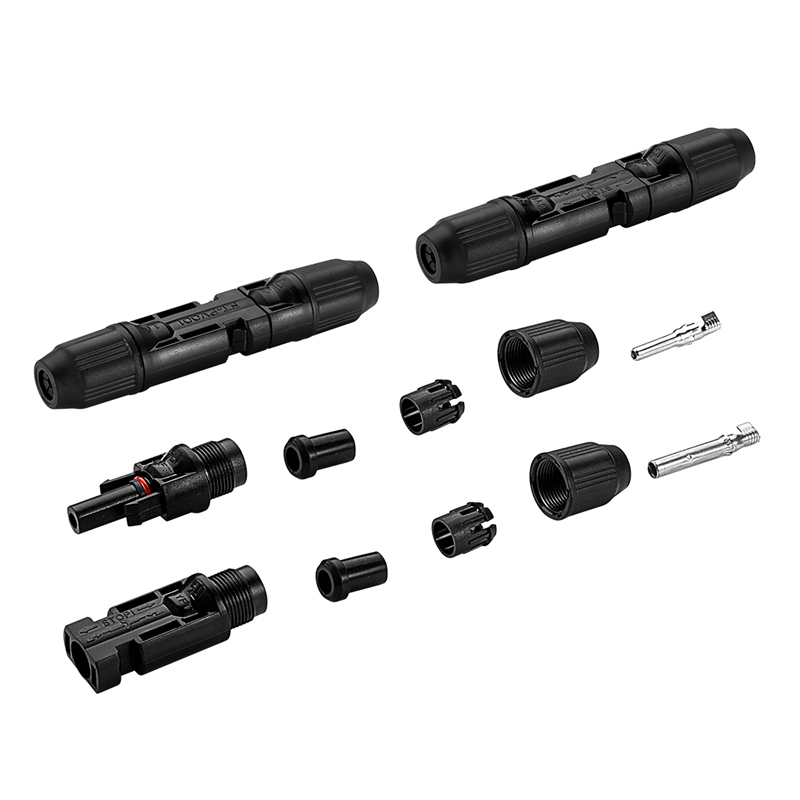

● 5 pairs solar panel cable connectors (5pcs Solar Male and 5pcs Solar Female).
● Compatible with PV cables with different insulation diameters (2.5m㎡--6m㎡).

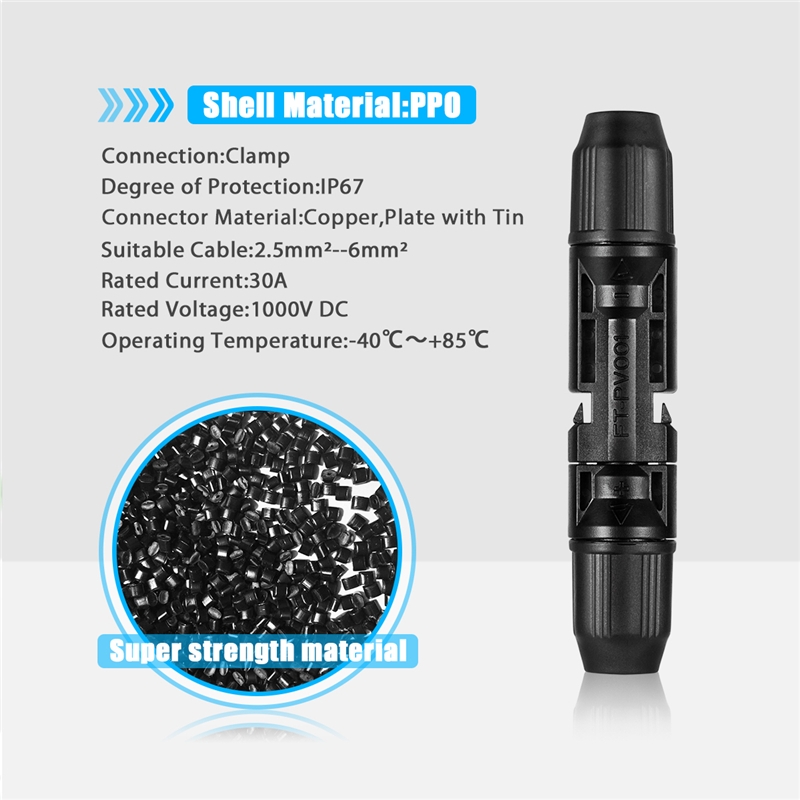

● PPO/PPE insulation material With excellent aging resistance and UV endurance.It can be used in the outdoor iron environment.
● High current and voltage carrying capacity.
● Simple, quick and safe effective field assembly.
Structure:
| Insulation | PPO |
| Contact material | Copper, Thorium silver |
| Cable Spec | 2.5 mm², 4mm², 6mm² |
| Connection method | Bayonet Mount adapter |
Specifications:
| Rated current | 30A |
| Rated Voltage | DC 1000V |
| Contact Resistance | 0.5mΩ |
| Operating Temperature | -40℃ to 85℃ |
| Protection Degree | IP67 |
